Case Inspector

Overview

The Gamma Case Inspector system offers a flexible, economical approach to content verification that extends well beyond the capabilities of a vision based or check weighing system that cannot “see” into open or closed cases. The Gamma’s multiple product memory, adjustable inspection windows and optional auto or manual height adjuster guarantees fast changeovers from one product to the next. The Gamma Case Inspector eliminates the possibility of shipping cases of missing, defective or under-filled product without reducing packaging line speeds.

Request DetailsFood and Beverage Guide

Features

Color display with high-resolution Touch Screen

Color display with high-resolution Touch Screen

IP65 Housing for operation in wash down environments

IP65 Housing for operation in wash down environments

Inspection options for Open Flap and Proud Bottle Inspection

Inspection options for Open Flap and Proud Bottle Inspection

User-Friendly

Set-up, data analysis or identifying the cause of system failures are easy step-bu-step processes using the touch screen keyboard. A multi-product memory, continuous display of all count and inspection data, and on-line help make the Gamma the user-friendliest case inspector available

Low Maintenance, Long Life

The Gamma’s no touch sensors are combined with robust, low maintenance, self-lubricating, stainless case ejectors that have proven life expediencies in excess of one million operations

Real-Time Support

Internet link and on-board diagnostic tools assure instantaneous, round-the-clock remote support by experienced personnel

Typical Applications

Cases
Double Stack Fruit Cups
Glass Bottles (inside cases)
Shrink Wrapped Products (inside cases)

What Makes Peco Inspx X-ray Systems Different?

Continuous research and development drives engineering excellence for all Peco InspX inspection systems. If you have an application that may benefit from Peco InspX’s inspection expertise, please contact us to learn more about how we can be of assistance. All inspection systems are delivered with four key features:

High Speed Operations
Manufacturers can easily operate at speeds over 1000 containers per minute - Peco InspX offers inspection, checkweighing and fill monitoring capable to match such performance.
Service
Peco InspX strives to deliver the very best service in the industry and the quality of our service is well recognized across our global customer base.
Software
Our inspection and detection software is custom designed constantly enhanced for technical excellence at our R&D facility in Silicon Valley.
Made in America
All systems are manufactured in our newly expanded facility in Modesto, California.

Tech Specs

Technical Information

Model
Gamma 101P Case Inspector

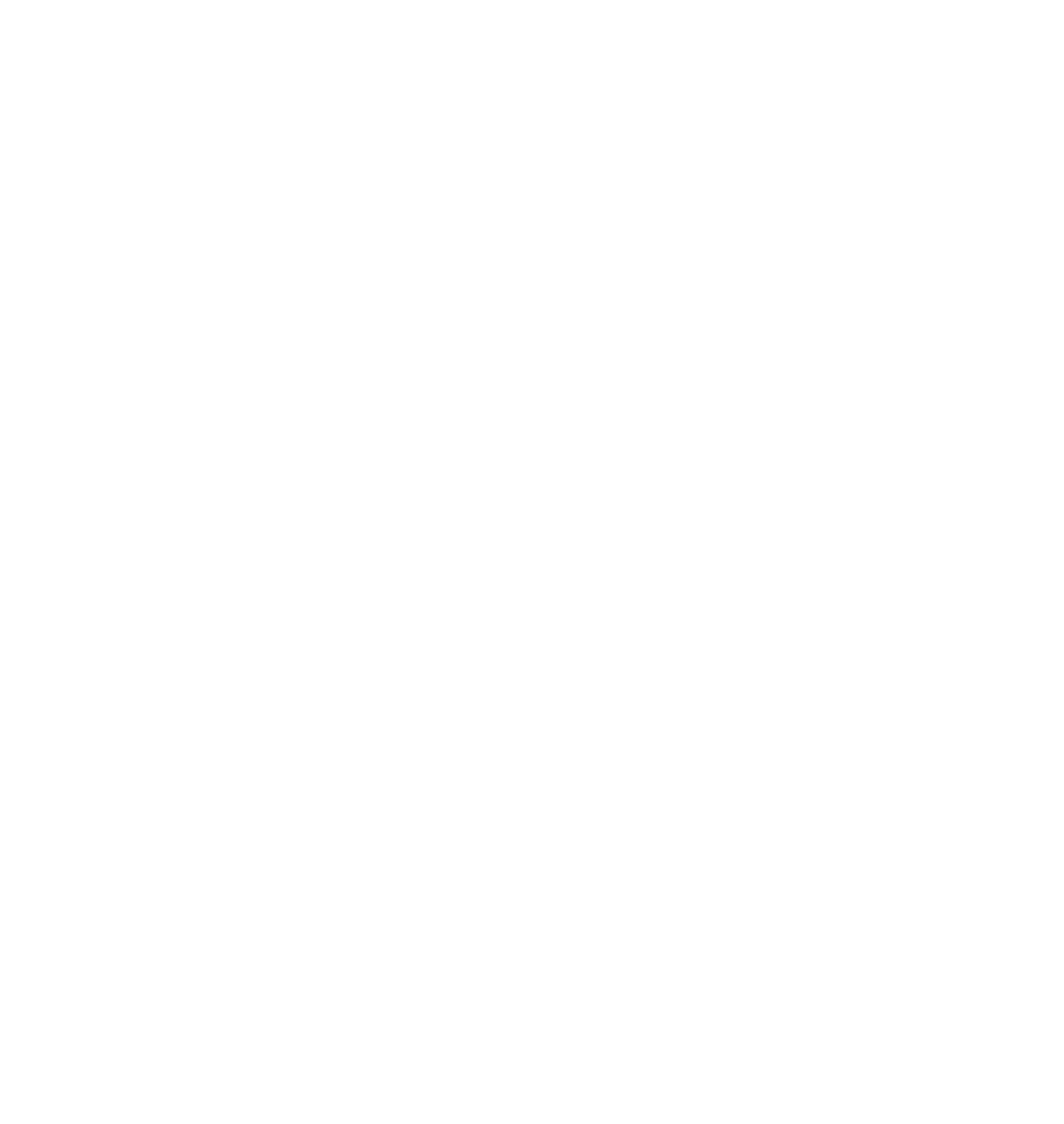

Machine Architectures
Side view
Conveyor
Mounts over customer's existing conveyor. No transfer point, product contact
PRODUCT/PACKAGE SIZE
Height: 457mm (18 inches) Width: 485mm (15 Inches)
ENVIRONMENT
IP 65
Speed
Up to 200 feet per minute
Line Speed
Up to 3,000 containers per minute
Voltage
115-230VAC @ 2.4kVA, 50/60 Hz
Air
80psi @5cfm (for ejection only)
Temperature
5ºC – 60ºC (40ºF – 140ºF)
CONTAINER EJECTION
Full family of ejection options available

Technical Information

Will X-ray Work with my Product?

Send us your products and we’ll show you what we can do.
