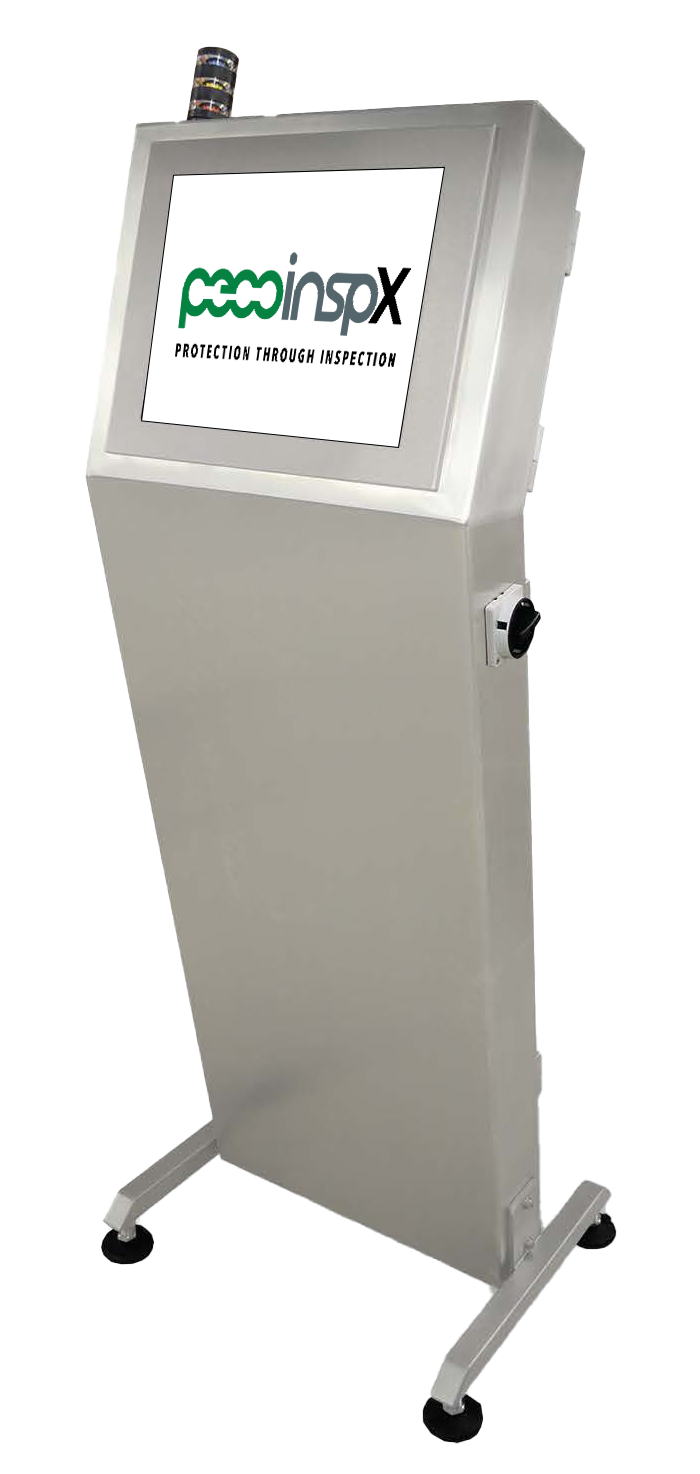

SampleTrac

Overview

The SampleTrac is designed to be an exceptionally reliable and easy to use high-speed sampling system that automatically tracks containers through the filling and seaming process. The system features a linux based software platform running on full computer, which provides exceptional sampling flexibility on the highest speed lines.

Request DetailsFood and Beverage Guide

Features

Single Container Sampling

The SampleTrac can manually sample from one specific filler or seamer head or it can sample from all heads.

Filler Sampling

Inputs from the sensors mounted in the filler, provide identification of each can by filler position and are tracked from the discharge of the filler to the inspection point to confirm exit and arrival.

Full Automated Sampling

The SampleTrac can be easily programmed to conduct periodic automatic sampling of individual heads or the entire filler or seamer.

Seamer Sampling

The SampleTrac allows automatic sampling of filled cans after discharge from the seamer. The sampling feature uses inputs from the sensors mounted on the seamer, to automatically track cans through the seamer.

Typical Applications

Multiple Container Automated Sampling
Single Container Sampling
Automated Printing

What Makes Peco Inspx X-ray Systems Different?

Continuous research and development drives engineering excellence for all Peco InspX inspection systems. If you have an application that may benefit from Peco InspX’s inspection expertise, please contact us to learn more about how we can be of assistance. All inspection systems are delivered with four key features:

High Speed Operations
Manufacturers can easily operate at speeds over 1000 containers per minute - Peco InspX offers inspection, checkweighing and fill monitoring capable to match such performance.
Service
Peco InspX strives to deliver the very best service in the industry and the quality of our service is well recognized across our global customer base.
Software
Our inspection and detection software is custom designed constantly enhanced for technical excellence at our R&D facility in Silicon Valley.
Made in America
All systems are manufactured in our newly expanded facility in Modesto, California.

Tech Specs

Technical Information

Model
SampleTrac
Line Speed
Up to 1500 cpm
OPERATOR INTERFACE
Touchscreen monitor 17.0″
SAMPLING MODE
Manual or fully automatic
CONSTRUCTION
Food Grade Stainless Steel
AMBIENT TEMPERATURE
0°C – 50°C (32°F – 122°F)
POWER REQUIREMENTS
120VAC or 230VAC, 50/60Hz single phase, 30W
CONTAINER EJECTION
Full lineup of ejection options available
DIMENSIONS (LXWXH)
508 x 559 x 1626 mm

Options

Automated Printing

Our automated printing option allows fully automatic printing of detailed sampling information on each container, which eliminates the need for an expensive takeaway conveyor to properly sequence samples.
