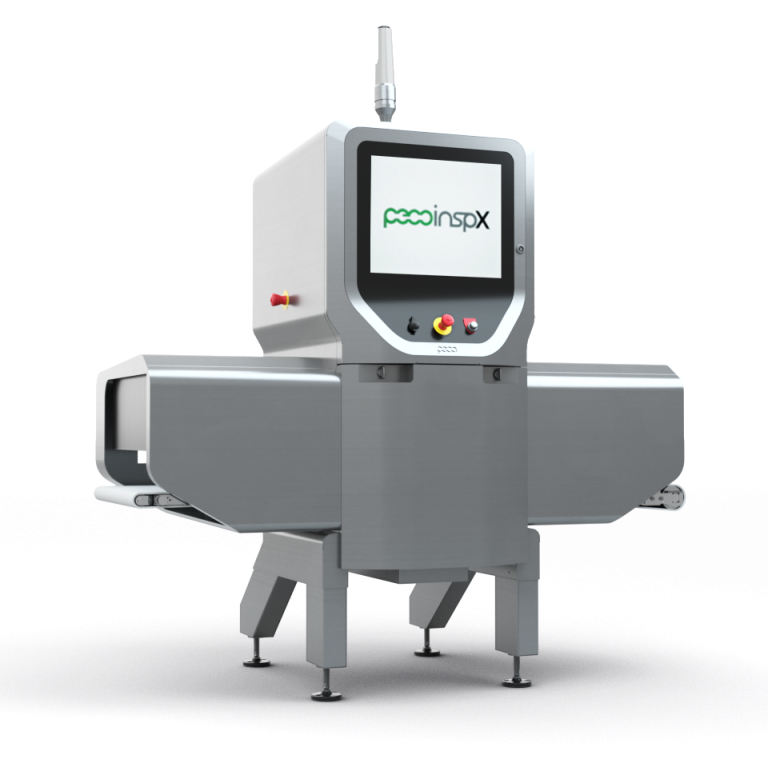

Allegro

Overview

No other top down X-ray system on the market offers such a robust set of standard features coupled with high performance options typically only available on machines costing thousands more.

The Allegro is also inexpensive and straightforward to maintain. Superior Peco InspX service ensures that you’ll have access to immediate support 24×7 and convenient local service when you need it. And because the Allegro is designed for reliable operation, you’ll be pleased with its low cost of ownership.

Request DetailsFood and Beverage Guide

Features

Modular Design

All subsystems have been designed with the maximum system availability, redundancy, and fault tolerance in mind

Conveyor Drive

Remotely controlled Powerflex 525-based variable frequency drive and sealed sanitary rollers

Real-Time Remote Support

Integrated wireless connectivity allows for secure remote support 24/7 globally. Peco InspX can resolve over 95% of customer issues with our powerful remote diagnostics software

Robust IT Security

Fully integrated end-to-end IT security offerings ensure your networks aren’t vulnerable and are defended from any outside threats. Optional IoT module allows for seamless SCADA integration

No Requirement for Container Spacing

This inspection geometry does not require any container spacing between adjacent containers

High Performance Generator

Features a high powered X-ray generator designed for continuous duty-cycle operation and no maintenance

Typical Applications

Low Profile Packages and Trays
Bulk or Loose Ingredients
Low Profile Packages and Trays
Multi-Packs and Smaller Cases

What Makes Peco Inspx X-ray Systems Different?

Continuous research and development drives engineering excellence for all Peco InspX inspection systems. If you have an application that may benefit from Peco InspX’s inspection expertise, please contact us to learn more about how we can be of assistance. All inspection systems are delivered with four key features:

High Speed Operations
Manufacturers can easily operate at speeds over 1000 containers per minute - Peco InspX offers inspection, checkweighing and fill monitoring capable to match such performance.
Service
Peco InspX strives to deliver the very best service in the industry and the quality of our service is well recognized across our global customer base.
Software
Our inspection and detection software is custom designed constantly enhanced for technical excellence at our R&D facility in Silicon Valley.
Made in America
All systems are manufactured in our newly expanded facility in Modesto, California.

Tech Specs

Technical Information

Architecture
Top down X-ray system
Conveyor
Integrated conveyor with built-in drive and controls
X-ray Tube Configuration
High reliability integrated X-ray generator
Aperture Size
Max Width: 20 in (508 mm) Max Height: 10 in (254 mm)
Environment
Standard: IP 66/NEMA 4X Optional: IP 69K, Passivation
Line Speed
Up to 436 ft/min (133 m/min)
Input Voltage
120-240 VAC options
Air Supply
80 psi @ 5 cfm (for ejection only)
Ambient Temperature
33°F – 113°F (1°C – 45°C)
Air Conditioning
Standard
Diode Size
Configurable to 0.8 mm, 0.4 mm and 0.2 mm
Container Ejection
Full range of high-speed ejection and diversion options available
Dimensions (LxDxH)
72 x 41.5 x 84 in (1,752 x 1,054 x 2,133 mm)
Safety Rating
Redundant – Category 4, Performance Level E
Computer
Solid State Industrial PC with Windows 10 and integrated AV
Connectivity
Integrated WiFi, Ethernet or Cellular Connection
Supported SCADA Systems
Ignition, Wonderware, FactoryTalk, Kepware and other OPC-UA compliant systems
Supported Cloud Platforms
Azure IoT Hub, AWS and Google Cloud via MQTT
Operator Interface
17" touchscreen
Construction
Standard: 304 Stainless Steel Optional: 316L/Passivated

Technical Information

Options

Industrial IoT Capabilities

Peco InspX offers industry leading plant connectivity and remote control including:

  • SCADA integration via OPC-UA protocol into Ignition, Wonderware, FactoryTalk, Kepware and all other popular integrated software platforms
  • Native support for Azure, AWS, and Google Cloud via MQTT
  • Real time system and performance monitoring of each machine
  • Insight into operational performance bottlenecks
  • Automatic archiving and classification of reject images
  • Optional archiving of all inspection images
Reject Management Package

Reject Management Package include secure options:

  • Lockable reject bin to ensure authorized access to rejected packages
  • Sensors to ensure positive confirmation on expected rejects
  • Sensors to alert on “bin full” condition
  • Air pressure sensor to alert for any out-of-range air supply problems
  • Optional software-controlled lock for user configurable access
Track and Trace Capabilities

In collaboration with industry-leading industrial package printers, Peco InspX offers an end-to-end package tracing system that prints on the inspected container the status (good or bad) of every package to ensure packages are auditable to their inspection results and X-ray image

Full Range of Ejection Options

Peco InspX designs and manufactures a wide range of high performance ejectors and diverters to include single solonoid, multiple solonoid, swing arm, lift gate, drop gate, air blast, flexible rail, guided path, and heavy duty options

RFID Access Control

Support automatic system authentication using customer ID badges. Supports a wide range of standard access protocol frequencies

Remote Operator Console

The remote operator console provides complete system monitoring and control up to 6 meters from the system inspection assembly

Sanitary Design

Can be equipped with an IP69K enclosure for high pressure wash down environments

Will X-ray Work with my Product?

Send us your products and we’ll show you what we can do.
