VacTrac

Overview

The VacTrac III provides a robust and cost effective way to confirm a minimum standard of vacuum or pressure on a metal closure. The VacTrac uses a inductive, non-contact inspection sensor that has proven to be exceptionally accurate and reliable, inspecting tens of millions of containers without compromise in environments where the closures may have moisture on the surface.

The VacTrac III offers a modern computing platform which delivers an easy to use system interface coupled with powerful online support when you need help. Also, the VacTrac can be purchased with an optional analytics package that provides exceptional insight into the machine’s inspection performance and the production line’s operation.

Request DetailsFood and Beverage Guide

Features

Real-Time Remote Support

Integrated wireless connectivity allows for secure remote support 24/7 globally. Peco InspX can resolve over 95% of customer issues with our powerful remote diagnostics software

Robust IT Security

Fully integrated end-to-end IT security offerings ensure your networks aren’t vulnerable and are defended from any outside threats. Optional IoT module allows for seamless SCADA integration

No Requirement for Container Spacing

This inspection geometry does not require any container spacing between adjacent containers

High Reliability Non-Contact Inspection

Mounts over the top of the customer’s existing conveyor, eliminating conveyor transfers into the machine for inspection. This design minimizes risk against conveyor jams over transfer points

Vacuum Verification for Cans

The VacTrac contains several algorithms for measuring lid deflection in cans. Setting up the VacTrac takes just minutes and you’ll get repeatable reliable inspection performance

Pressure Verification For Pull Tab Containers

The VacTrac’s sophisticated software algorithms can compensate for the position of a pull tab during the inspection process

Tamper Evident Band Inspection

The VacTrac can support a wide variety of external sensors to support additional product inspections, including checking for the presence of a tamper evident band

Typical Applications

Seamed Metal Containers
Ring-Pull Containers
Plastic and Glass Containers with Metal Lids

What Makes Peco Inspx X-ray Systems Different?

Continuous research and development drives engineering excellence for all Peco InspX inspection systems. If you have an application that may benefit from Peco InspX’s inspection expertise, please contact us to learn more about how we can be of assistance. All inspection systems are delivered with four key features:

High Speed Operations
Manufacturers can easily operate at speeds over 1000 containers per minute - Peco InspX offers inspection, checkweighing and fill monitoring capable to match such performance.
Service
Peco InspX strives to deliver the very best service in the industry and the quality of our service is well recognized across our global customer base.
Software
Our inspection and detection software is custom designed constantly enhanced for technical excellence at our R&D facility in Silicon Valley.
Made in America
All systems are manufactured in our newly expanded facility in Modesto, California.

Tech Specs

Technical Information

Architecture
Analog sensor system
Conveyor

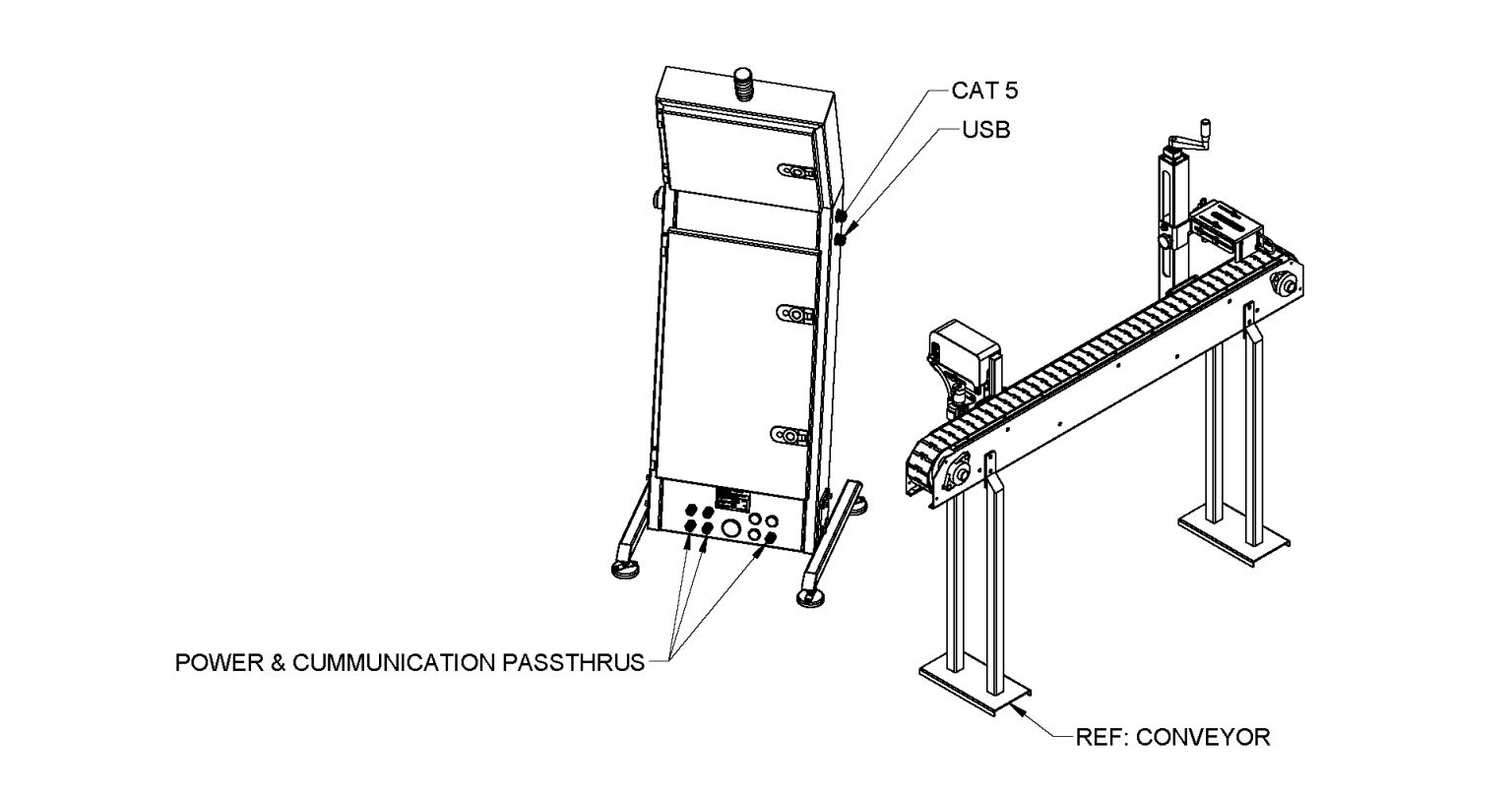

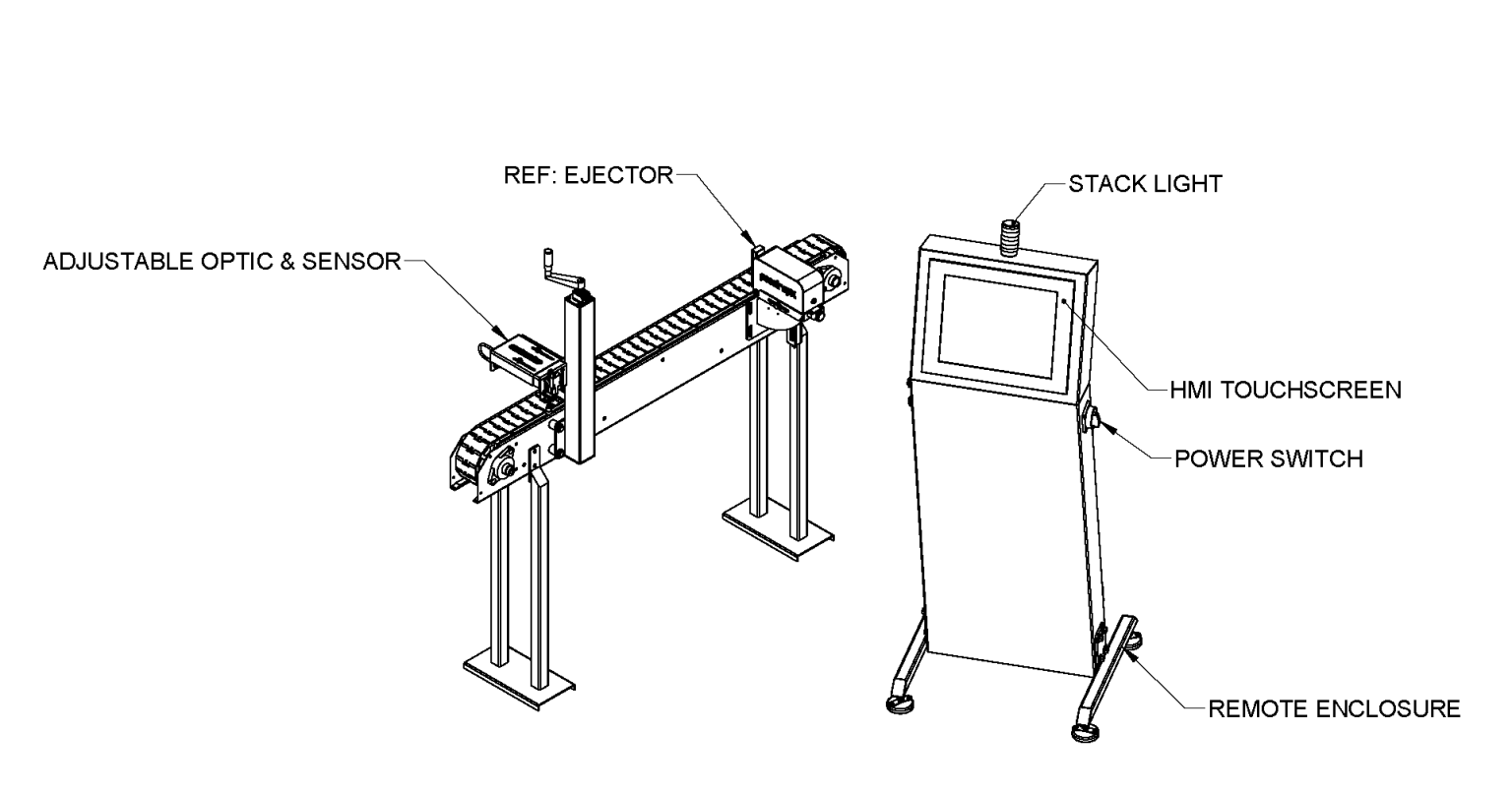

No internal conveyor. Mounts over customer’s existing conveyor. No transfer points or product contact
Aperture Size
No limit on height, width: 6.0” (152.4mm). Multiple sensor sizes to optimize deflector measurement (18, 25, 36 and 42 mm)
Environment
Standard: IP 65 Optional: Washdown/Corrosion resistant
Line Speed
Up to 2,000 containers per minute
Input Voltage
Available in 120 or 240 VAC options
Air Supply
80 psi @ 5 cfm (for ejection only)
Ambient Temperature
33°F – 113°F (1°C – 45°C)
Container Ejection
Full range of high-speed ejection and diversion options available
Dimensions (LxDxH)
9 x 30 x 47 in (229 x 762 x 1,194 mm)
Safety Rating
Redundant – Category 4, Performance Level E
Computer
Industrial PC - Linux Embedded
Connectivity
Integrated WiFi, Ethernet or Cellular Connection
Supported SCADA Systems
Programmable digital outputs available
Deflection Accuracy
+/- 0.005”
Operator Interface
17" touchscreen
Construction
Standard: 304 Stainless Steel Optional: 316L/Passivated

Technical Information

Options

Cocked/Missing Cap Detection

The cocked/missing cap sensor for plastic closures is an inexpensive way to ensure that containers are properly capped

Remote Operator Console

The remote operator console provides complete system monitoring and control up to 6 meters from the system inspection assembly

Sanitary Design

Can be equipped with an IP69K enclosure for high pressure wash down environments

Missing Foil Detection

The missing foil sensor verifies the presence of foil seals under caps

Reject Management Package

Reject Management Package include secure options:

  • Lockable reject bin to ensure authorized access to rejected packages
  • Sensors to ensure positive confirmation on expected rejects
  • Sensors to alert on “bin full” condition
  • Air pressure sensor to alert for any out-of-range air supply problems
  • Optional software-controlled lock for user configurable access
Full Range of Ejection Options

Peco InspX designs and manufactures a wide range of high performance ejectors and diverters to include single solonoid, multiple solonoid, swing arm, lift gate, drop gate, air blast, flexible rail, guided path, and heavy duty options
